Plots modules usage

To use numerical_function_spaces.orlicz_spaces.plots in a project:

- link to interactive notebooks session.

import matplotlib.pyplot as plt
import numpy as np

import numerical_function_spaces.orlicz_spaces as osm

def Orlicz_function(u):
    return np.where(u <= 1, 0, u ** 3 - 1)

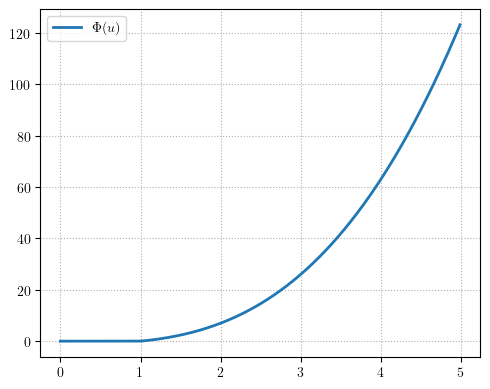

osm.plot_Phi(Orlicz_function, du=0.01, u_max=5)

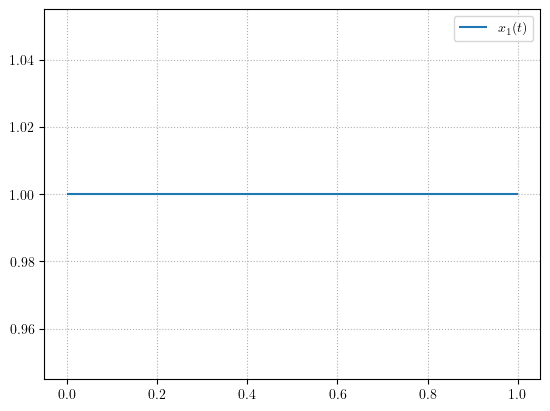

# constant function
len_t = 1
x_1 = np.zeros(shape=(2, len_t))
x_1[1, 0] = 1  # measure of supports
x_1[0, 0] = 1  # values

for i in range(0, len_t):
    plt.hlines(y=x_1[0, i], xmin=sum([j for j in x_1[1, 0:i]]), xmax=sum([j for j in x_1[1, 0:i + 1]]),
               label='$x_1(t)$' if i == 0 else None, )
plt.legend()
plt.show()
plt.close()

# nieskończony nośnik
len_t = 1  # ile zbiorów w dziedzinie - mogą być nieskończone -  to nie jest długość dziedziny
x_4 = np.zeros(shape=(2, len_t))
x_4[1, 0] = np.inf  # miara nośnika
x_4[0, 0] = 1  # wartości
plt.plot([0, 5], [x_4[0, 0], x_4[0, 0]], label='$x_4(t)$')
plt.xticks(np.arange(0, 6, step=1), labels=[str(i) if i < 5 else r"$\infty$" for i in range(6)])

plt.legend()
plt.show()
plt.close()

# funkcja z różnymi nośnikami
len_t = 5  # ile zbiorów w dziedzinie - mogą być nieskończone -  to nie jest długość dziedziny
x_2 = np.zeros(shape=(2, len_t))  # x będzie macierzą. w pierwszym wierszu wartości w drugim miara nośnika do wartości
for i in range(len_t):
    x_2[1, i] = i + 1  # najpierw podaj miary nośników
    x_2[0, i] = 1 / (i + 1)  # potem wartości
for i in range(0, len(x_2[1, :])):
    plt.hlines(y=x_2[0, i], xmin=sum([j for j in x_2[1, 0:i]]), xmax=sum([j for j in x_2[1, 0:i + 1]]),
               label='$x_2(t)$' if i == 0 else None)
plt.legend()
plt.show()
plt.close()

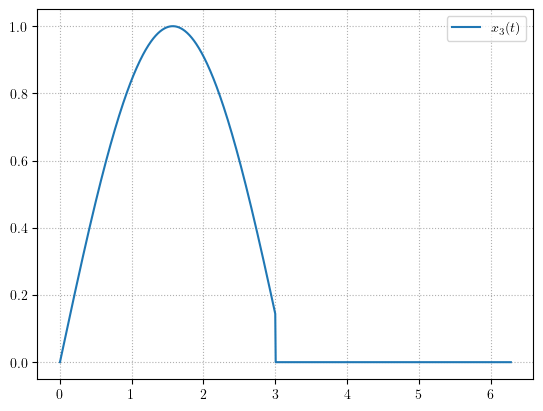

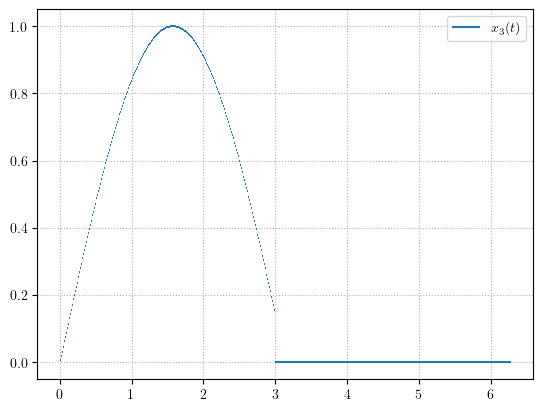

# funkcja definiowana na przedziale - z równymi nośnikami
t_max = 2 * np.pi
len_t = 1000
x_3 = np.zeros(shape=(2, len_t))  # x będzie macierzą. w pierwszym wierszu wartości w drugim miara nośnika do wartości
x_3[1, :] = t_max / len_t  # miara nośnika
for i in range(len_t):
    arg = t_max / len_t * i
    if arg <= 3:
        x_3[0, i] = np.sin(arg)
plt.plot(np.linspace(0, t_max, len(x_3[1, :])), x_3[0], label='$x_3(t)$')
plt.legend()
plt.show()
plt.close()

for i in range(0, len_t):
    plt.hlines(y=x_3[0, i], xmin=sum([j for j in x_3[1, 0:i]]), xmax=sum([j for j in x_3[1, 0:i + 1]]),
               label='$x_3(t)$' if i == 0 else None, )
plt.legend()
plt.show()
plt.close()

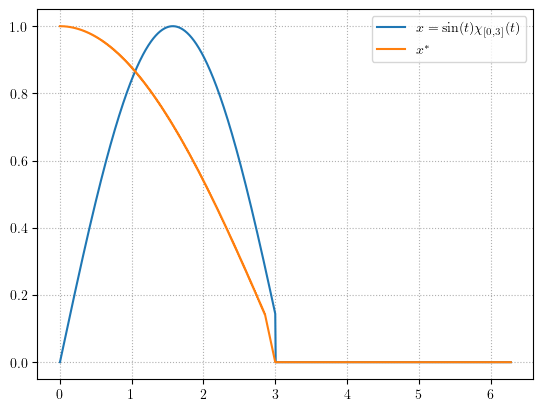

# non-incerasing rearangement
# x_3_ri = np.sort(abs(x_3[0,:]))[::-1]
x_3_ri = x_3[::, x_3[0,].argsort()[::-1]]  # malejąco
# x_3_ri = x_3[::, x_3[0,].argsort()[::1]]  # rosnąco
plt.plot(np.linspace(0, t_max, len(x_3[1, :])), x_3[0, :], label='$x = \sin(t)\chi_{[0,3]}(t)$')
plt.plot(np.linspace(0, t_max, len(x_3[1, :])), x_3_ri[0, :], label='$x^*$')
# plt.plot(np.linspace(0, t_max, len(x_3[1, :])), np.cos(np.linspace(0, t_max, len(x_3[1, :]))/2), label='$\cos(\\frac{t}{2})$')
plt.legend()
plt.show()
plt.close()

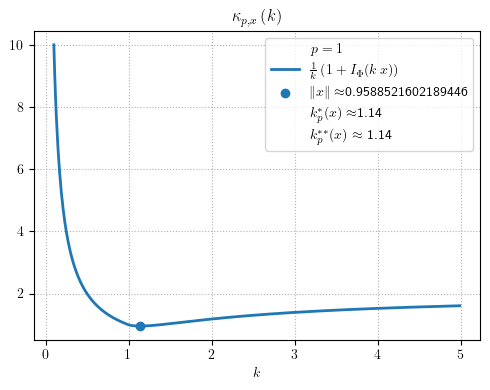

\(\kappa\) (kappa) function

Let \(x\in L_{\Phi,p}.\) For any \(k \in (0,\infty) \) define function \(\kappa_{p,x}(k)\colon (0,\infty) \rightarrow (0,\infty]\) by formula

\[\begin{equation*} \kappa_{p,x}(k) = \frac{1}{k}s_p\left(I_{\Phi }(kx)\right). \end{equation*}\]

Then \(K_{p}(x)\) is equal to set of such \(k\) for which \(\kappa_{p,x}(k)\) has infimum.

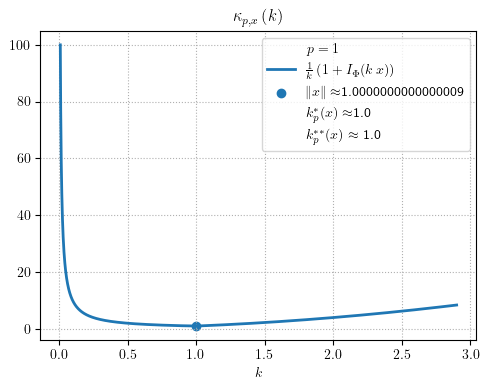

osm.plot_kappa(Orlicz_function, x_1,
               k_min=0.01,
               k_max=2.9,
               dk=0.001,
               p_norm=1,
               show_progress=False,
               save=False)

k_min = .1
k_max = 5
dk = 0.01

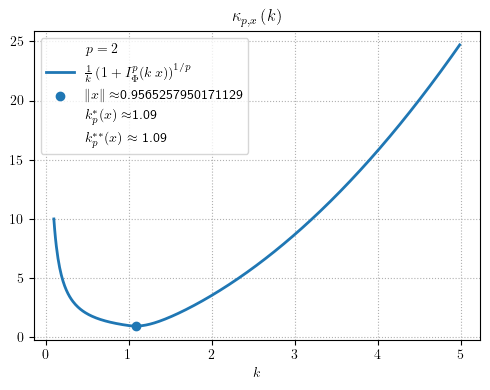

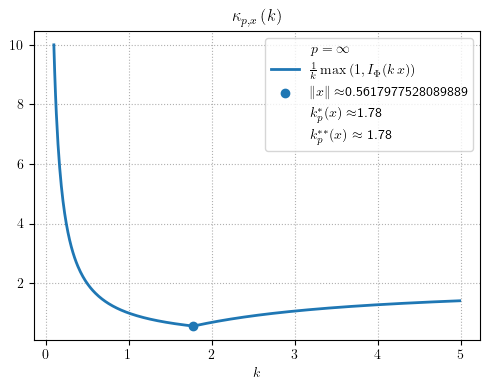

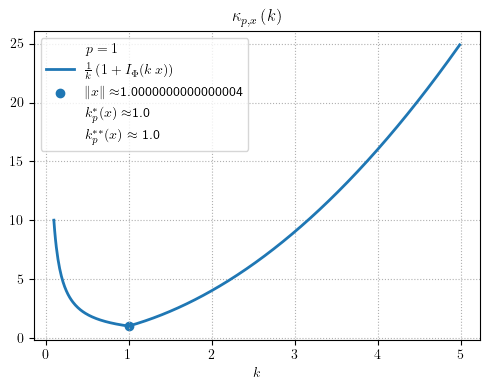

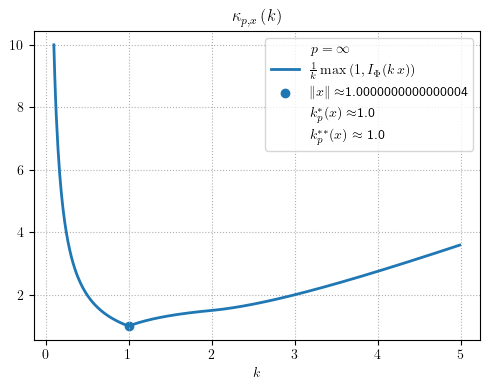

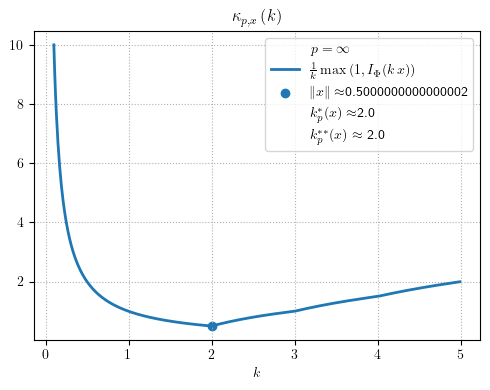

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_1,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   show=True)

def Orlicz_function(u):
    Phi = np.zeros(len(u))
    for i in range(len(u)):
        if u[i] <= 1:
            Phi[i] = u[i] ** 2
        elif u[i] <= 2:
            Phi[i] = 2 * u[i] - 1
        else:
            Phi[i] = (u[i] - 1) ** 2 + 2
    return Phi

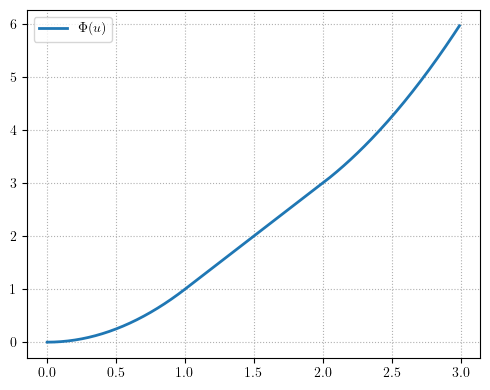

osm.plot_Phi(Orlicz_function, du=0.01, u_max=3)

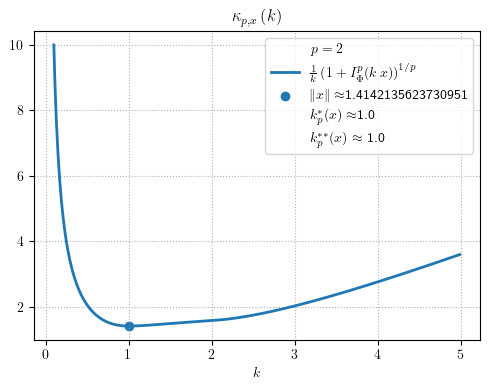

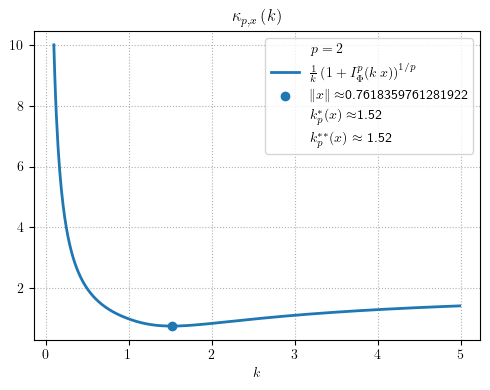

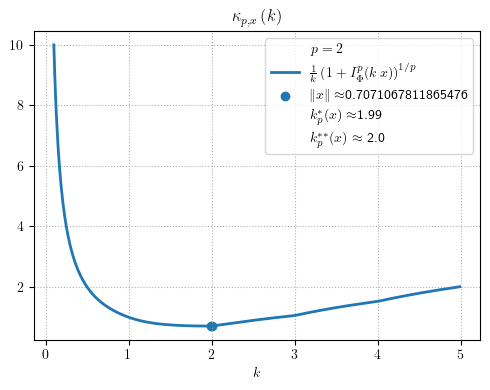

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_1,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   show=True)

def Orlicz_function(u):
    Phi = np.zeros(len(u))
    for i in range(len(u)):
        if u[i] <= 1:
            Phi[i] = 0
        elif u[i] <= 2:
            Phi[i] = u[i] - 1
        elif u[i] <= 3:
            Phi[i] = (u[i] - 1) ** 2
        else:
            Phi[i] = np.inf
    return Phi

# the same function as above
# def Orlicz_function(u):
#     return np.where(u <= 1, 0, np.where(u <= 2, u - 1, np.inf))

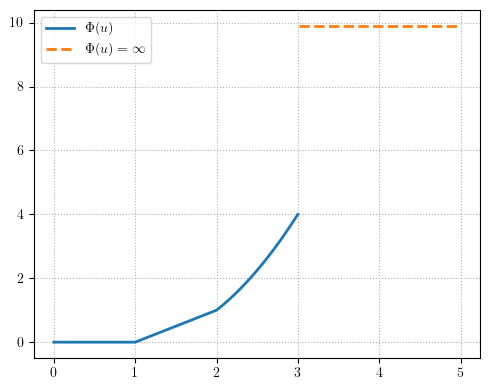

osm.plot_Phi(Orlicz_function, du=0.01, u_max=5)

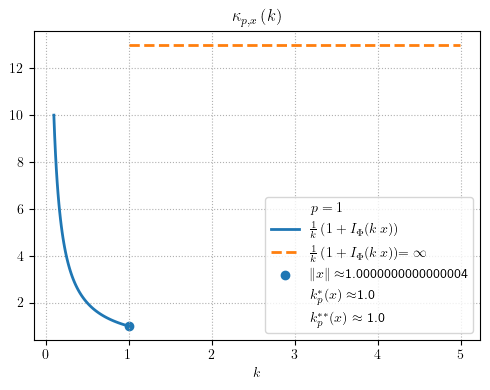

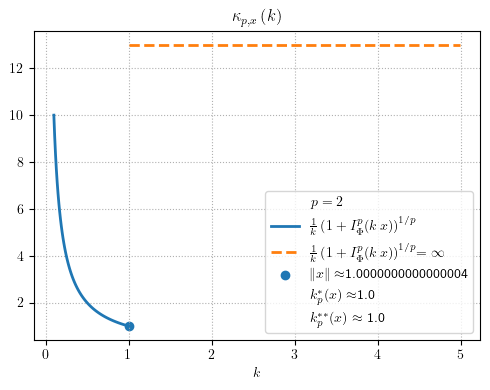

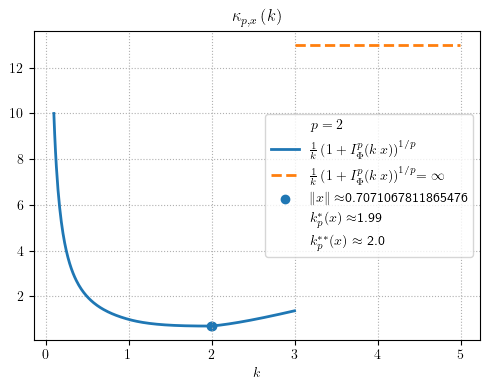

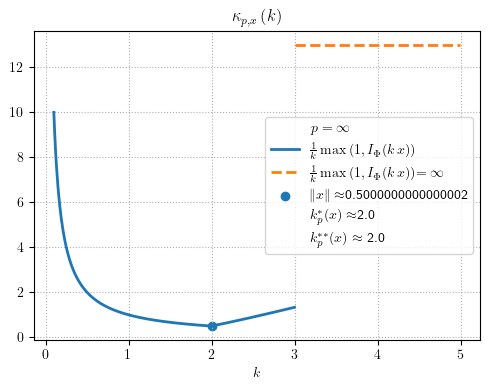

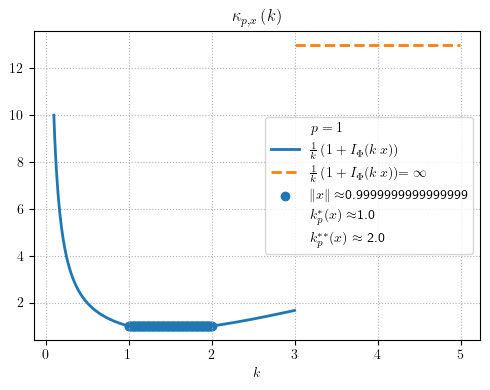

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_1,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   show=True)

def Orlicz_function(u):
    Phi = np.zeros(len(u))
    for i in range(len(u)):
        if u[i] <= 1:
            Phi[i] = 0
        else:
            Phi[i] = u[i] - 1
    return Phi

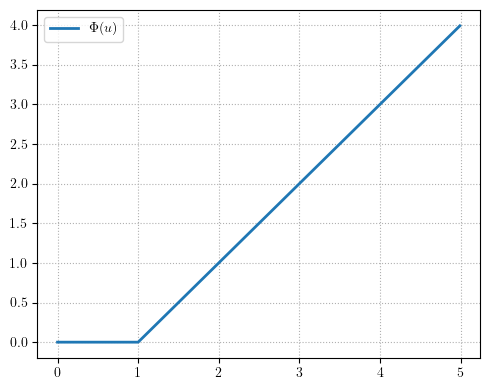

osm.plot_Phi(Orlicz_function, du=0.01, u_max=5)

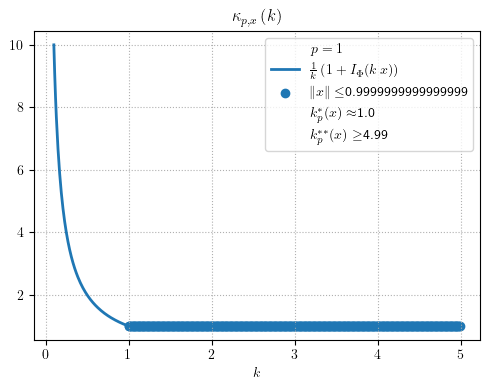

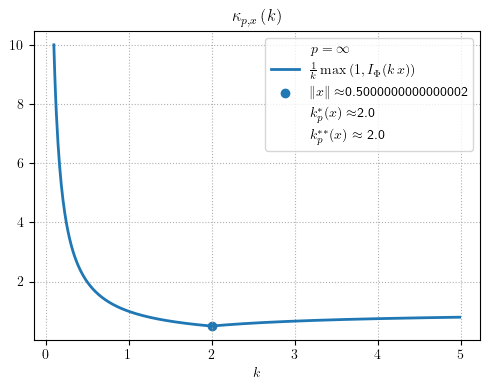

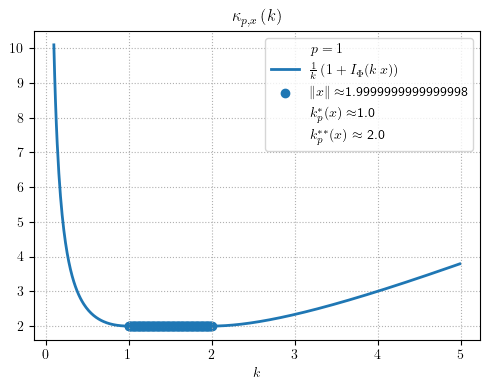

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_1,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   show=True)

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_2,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   show=True)

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_3,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   show=True)

It is known, that for Orlicz norm for such Orlicz function we have

\[\begin{equation*} ||x|| = \int_0^1 x^{*}(t)\,d\mu(t) \end{equation*}\]

so

\[\begin{equation*} ||x_3|| = \int_0^1 \cos{\frac{t}{2}}\,dt = 2\sin{\frac{1}{2}} \end{equation*}\]

and we may check accuracy of calculation by

osm.Orlicz_norm_with_stars(Orlicz_function, x=x_3)[0] - 2 * np.sin(1 / 2)

np.float64(2.751016016100394e-07)

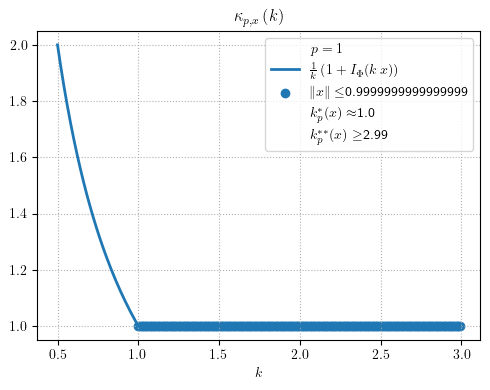

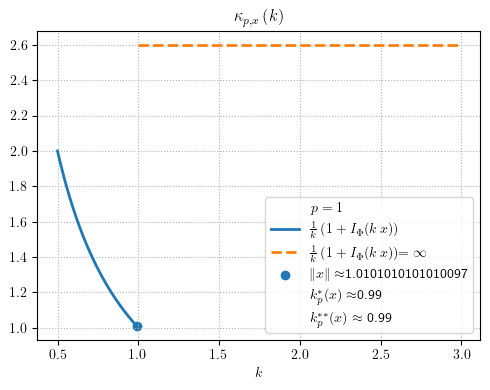

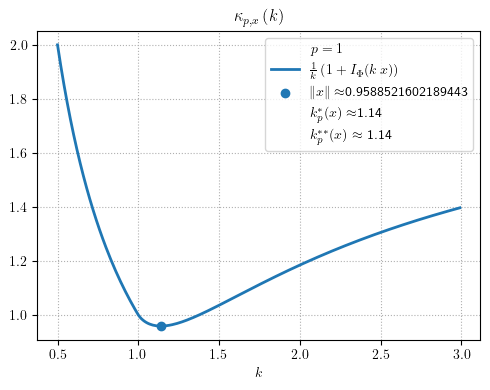

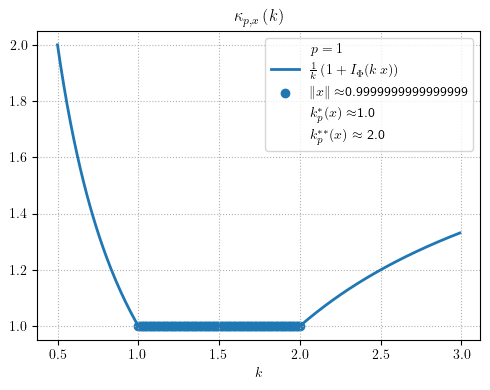

for x in [x_1, x_2, x_3, x_4]:
    osm.plot_kappa(Orlicz_function, x,
                   k_min=0.5,
                   k_max=3,
                   dk=dk,
                   p_norm=1,
                   show=True)

C:\Users\Adam\OneDrive - Zachodniopomorski Uniwersytet Technologiczny w Szczecinie\numerical_function_spaces\src\numerical_function_spaces\orlicz_spaces\norms.py:50: RuntimeWarning: invalid value encountered in multiply
  return 1 / k * (1 + np.nansum(Orlicz_function((k * x[0, :])) * x[1, :]))

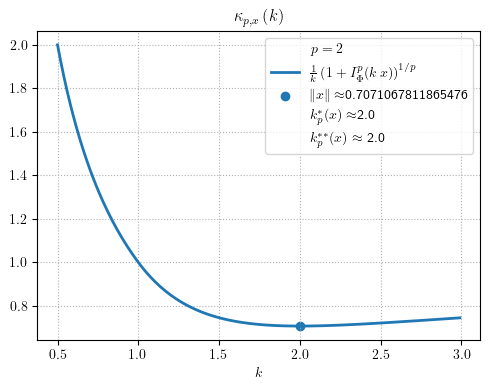

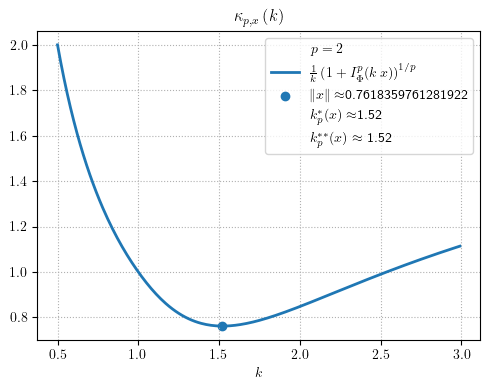

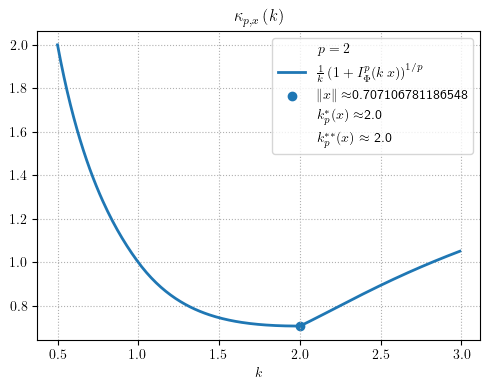

for x in [x_1, x_2, x_3, x_4]:
    osm.plot_kappa(Orlicz_function, x,
                   k_min=0.5,
                   k_max=3,
                   dk=dk,
                   p_norm=2,
                   show=True)

C:\Users\Adam\OneDrive - Zachodniopomorski Uniwersytet Technologiczny w Szczecinie\numerical_function_spaces\src\numerical_function_spaces\orlicz_spaces\norms.py:54: RuntimeWarning: invalid value encountered in multiply
  return 1 / k * (1 + (np.nansum(Orlicz_function((k * x[0, :])) * x[1, :]) ** p_norm)) ** (1 / p_norm)

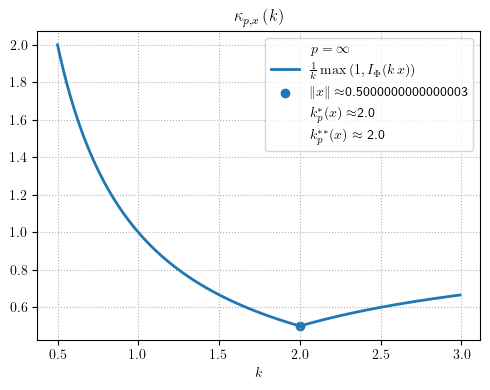

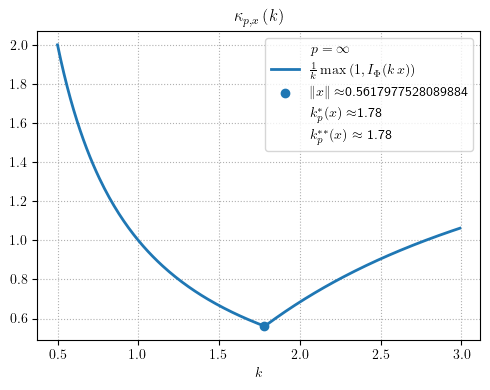

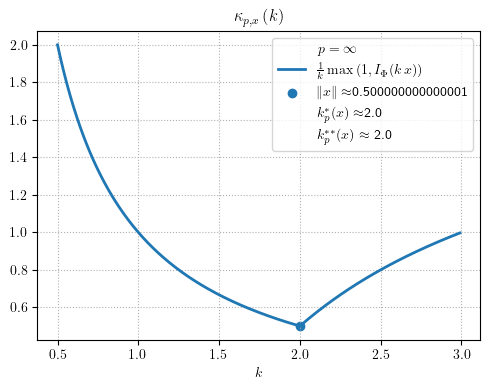

for x in [x_1, x_2, x_3, x_4]:
    osm.plot_kappa(Orlicz_function, x,
                   k_min=0.5,
                   k_max=3,
                   dk=dk,
                   p_norm=np.inf,
                   show=True)

C:\Users\Adam\OneDrive - Zachodniopomorski Uniwersytet Technologiczny w Szczecinie\numerical_function_spaces\src\numerical_function_spaces\orlicz_spaces\norms.py:52: RuntimeWarning: invalid value encountered in multiply
  return 1 / k * (max(1, np.nansum(Orlicz_function((k * x[0, :])) * x[1, :])))

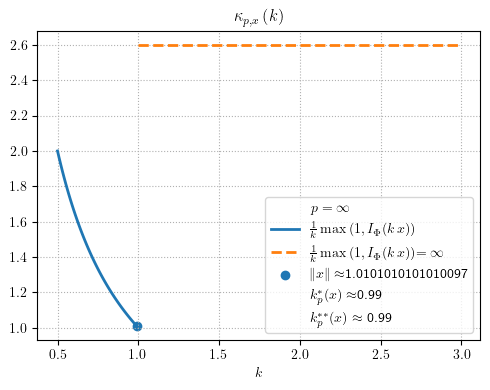

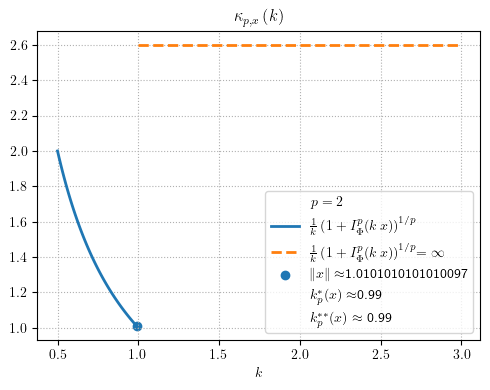

for p_norm in [1, 2, np.inf]:
    osm.plot_kappa(Orlicz_function, x_4,
                   k_min=k_min,
                   k_max=k_max,
                   dk=dk,
                   p_norm=p_norm,
                   save=False, show=True)

\(\alpha\) (alpha) and \(\tau\) (tau) function

For any \(k \in (0,\infty)\) define function \(\alpha_{p,x}(k)\colon (0,\infty) \rightarrow \left[-1, \infty \right]\) by formula

\[\begin{equation*} \alpha_{p,x}(k) =\left\{ \begin{array}{lll} I_{\Phi}^{p-1}(kx)I_{\Psi}(p_+(k|x|)) -1 & \text{if } & 1 \leq p <\infty, \\ -1 & \text{if} & p=\infty \text{ and } I_{\Phi}(kx)\leq 1 \\ I_{\Psi}(p_+(k|x|)) & \text{if } & p=\infty \text{ and } I_{\Phi}(kx) > 1 \end{array} \right. \end{equation*}\]

and, finally, define function \(\tau_{p,x}(k)\colon (0,\infty) \rightarrow \left[0,\infty\right]\) by formula

\[\begin{equation*} \tau_{p,x}(k) =\left\{ \begin{array}{lll} I_{\Psi}(p_+(k|x|)) & \text{if } & p =1, \\ I_{\Phi}^{{1}/{q}}(kx)I_{\Psi}^{{1}/{p}}(p_+(k|x|)) & \text{if} & 1 < p < \infty \text{ and } {1}/{p} + {1}/{q} = 1 \\ I_{\Phi}(kx) & \text{if } & p=\infty. \end{array} \right. \end{equation*}\]

Function \(\alpha_{p,x}(k)\) is called the norm attainability indicator.

def Orlicz_function(u):
    return np.where(u <= 1, u, u ** 2)


x = np.array([[1], [3]])

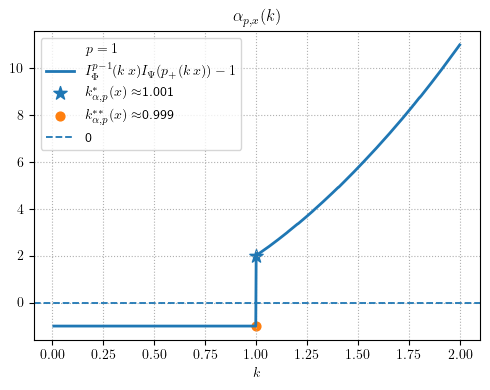

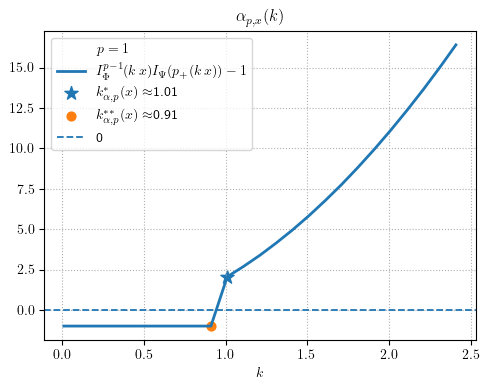

osm.plot_alpha(Orlicz_function, du=0.001, u_max=5, x=x, p_norm=1)

for k>2.5097499999999995: p(kx) is out of Psi domain - if needs try bigger u_max or smaller k_max

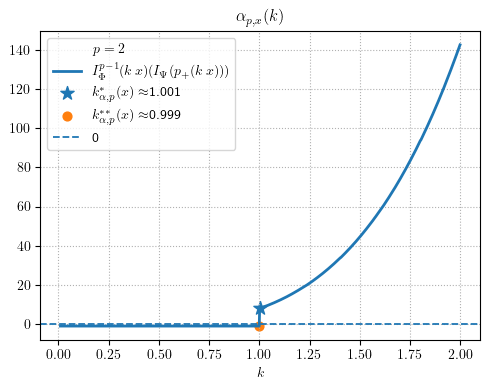

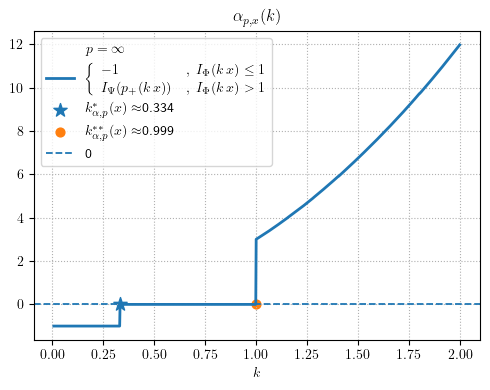

for p_norm in [1, 2, np.inf]:
    osm.plot_alpha(Orlicz_function, du=0.001, u_max=5, x=x, p_norm=p_norm, k_max=2, show=True)

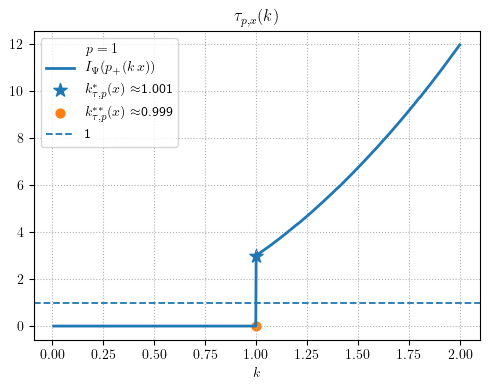

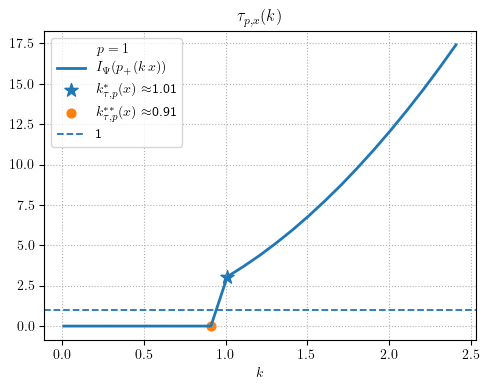

osm.plot_tau(Orlicz_function, du=0.001, u_max=5, x=x, p_norm=1)

for k>2.5097499999999995: p(kx) is out of Psi domain - if needs try bigger u_max or smaller k_max

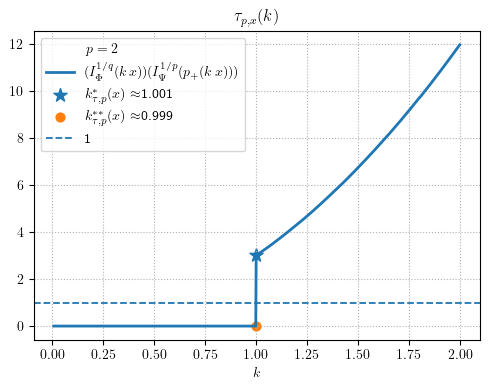

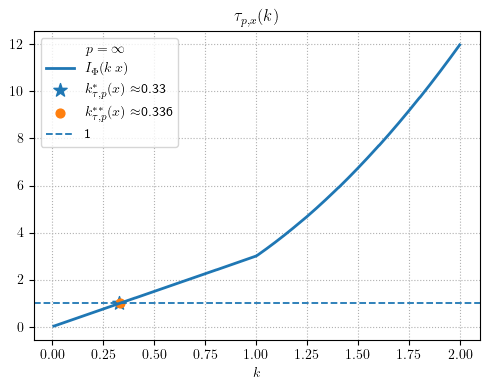

for p_norm in [1, 2, np.inf]:
    osm.plot_tau(Orlicz_function, du=0.001, u_max=5, x=x, p_norm=p_norm, k_max=2, show=True)
