Space elements, kappa function and p_Amemiya norm

To use numerical_function_spaces.orlicz_spaces in a project:

- link to interactive notebooks session.

import matplotlib.pyplot as plt
import numpy as np

import numerical_function_spaces.orlicz_spaces as osm

## Points/elements in spaces

Define \(x\) as simple function \(x(t)=\sum_{i=0}^{{len\_t} - 1} a_i \cdot \chi_{A_i}(t)\) as two rows numpy array, where first row is for \(a_i\) and second is for \(\mu(A_i)\)

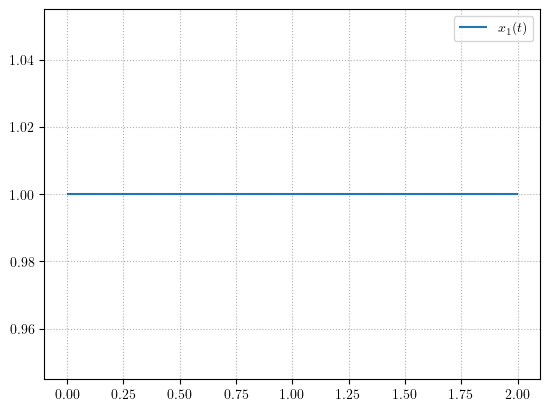

Define \(x_1(t)=1 \cdot \chi_{[0,2)}(t)\)

len_t = 1
x_1 = np.zeros(shape=(2, len_t))
x_1[1, 0] = 2  #  measure of support
x_1[0, 0] = 1  # value

for i in range(0, len_t):
    plt.hlines(y=x_1[0, i], xmin=sum([j for j in x_1[1, 0:i]]), xmax=sum([j for j in x_1[1, 0:i + 1]]),
               label='$x_1(t)$' if i == 0 else None, )
plt.legend()
plt.show()
plt.close()

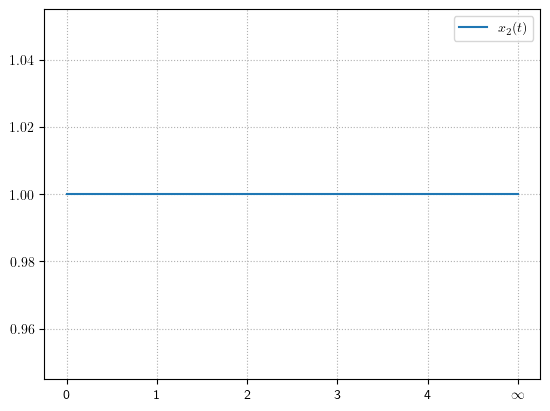

Define \(x_2(t)=1 \cdot \chi_{[0,\infty)}(t)\)

# support with infinite measure support
len_t = 1
x_2 = np.zeros(shape=(2, len_t))
x_2[1, 0] = np.inf  #  measure of support
x_2[0, 0] = 1  # value

plt.plot([0, 5], [x_2[0, 0], x_2[0, 0]], label='$x_2(t)$')
plt.xticks(np.arange(0, 6, step=1), labels=[str(i) if i < 5 else r"$\infty$" for i in range(6)])

plt.legend()
plt.show()
plt.close()

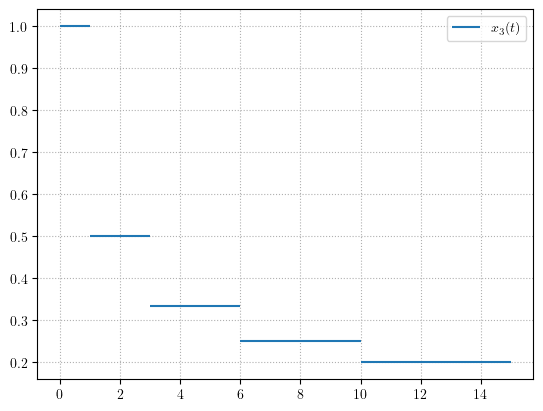

Define \(x_3(t)=1 \cdot \chi_{[0,1)}(t) + \frac{1}{2} \cdot \chi_{[1,3)}(t) + \frac{1}{3} \cdot \chi_{[3,6)}(t) + \frac{1}{4} \cdot \chi_{[6,10)}(t) + \frac{1}{5} \cdot \chi_{[10,15)}(t)\)
or \(x_3(t) = \sum_{i=0}^{4} \frac{1}{i+1}\cdot \chi_{A_{i}}(t)\) for disjoint \(A_i\) sets with \(\mu(A_i)=i+1\).

len_t = 5  #
x_3 = np.zeros(shape=(2, len_t))
for i in range(len_t):
    x_3[1, i] = i + 1  #  measure of supports
    x_3[0, i] = 1 / (i + 1)  # values

for i in range(0, len(x_3[1, :])):
    plt.hlines(y=x_3[0, i], xmin=sum([j for j in x_3[1, 0:i]]), xmax=sum([j for j in x_3[1, 0:i + 1]]),
               label='$x_3(t)$' if i == 0 else None)
plt.legend()
plt.show()
plt.close()

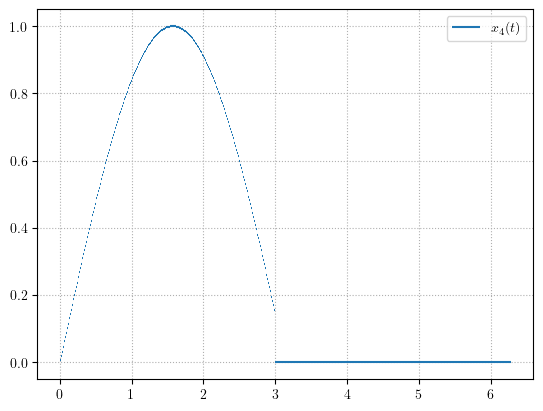

Define

\[\begin{equation*} x_4(t)=\sum_{i=0}^{999} \left\{ \begin{array}{lll} \sin\left(\frac{2\cdot \pi}{1000}\cdot i\right) & \text{if} & \frac{2\cdot \pi}{1000}\cdot i \leq 3, \\ 0 & \text{if} & \text{otherwise} \end{array} \right\} \cdot \chi_{A_{i}}(t) \end{equation*}\]

for disjoint \(A_i\) sets with \(\mu(A_i)=\frac{2\cdot \pi}{1000}\).

t_max = 2 * np.pi
len_t = 1000
x_4 = np.zeros(shape=(2, len_t))
x_4[1, :] = t_max / len_t  # measure of supports
for i in range(len_t):
    arg = t_max / len_t * i
    if arg <= 3:
        x_4[0, i] = np.sin(arg)  # values

for i in range(0, len_t):
    plt.hlines(y=x_4[0, i], xmin=sum([j for j in x_4[1, 0:i]]), xmax=sum([j for j in x_4[1, 0:i + 1]]),
               label='$x_4(t)$' if i == 0 else None, )
plt.legend()
plt.show()
plt.close()

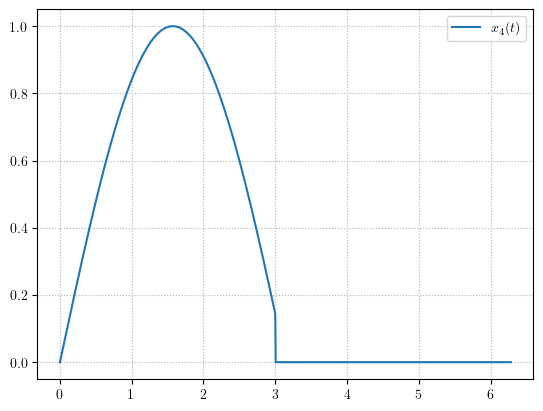

plt.plot(np.linspace(0, t_max, len(x_4[1, :])), x_4[0], label='$x_4(t)$')
plt.legend()
plt.show()
plt.close()

Orlicz space

Given any Orlicz function \(\Phi \) we define on \(L_{0}\) the modular \(I_{\Phi } \) by

\[\begin{equation*} I_{\Phi }(x)=\int_{T}\Phi \left( x(t)\right) d\mu \cdot \end{equation*}\]

Then the set

\[\begin{equation*} L_{\Phi }=\left\{ x\in L^{0}(T):I_{\Phi }(cx)<\infty \right\} \end{equation*}\]

for some \(c>0\) depending on \(x\) is called an Orlicz space. This space is usually equipped with the Luxemburg norm

\[\begin{equation*} \left\Vert x\right\Vert _{\Phi }=\inf \left\{ \varepsilon >0:I_{\Phi }\left( \frac{x}{\varepsilon }\right) \leq 1\right\} \end{equation*}\]

or with the equivalent one

\[\begin{equation*} \left\Vert x\right\Vert _{\Phi }^{0}=\underset{k>0}{\inf }\frac{1}{k}\left( 1+I_{\Phi }(kx)\right) \end{equation*}\]

called the Orlicz norm in the Amemiya form.

Let’s define another class of norms given by the Amemiya formula - norms generated by the function

\[\begin{equation*} s_p(u)=\left\{ \begin{array}{lll} \left(1+u^p\right)^{\frac{1}{p}} & \text{if} & 1 \leq p < \infty, \\ \max\left\{1,u\right\} & \text{if} & p = \infty% \end{array}% \right. \end{equation*}\]

kappa() function

Let \(x\in L_{\Phi,p}.\) For any \(k \in (0,\infty) \) define function \(\kappa_{p,x}(k)\colon (0,\infty) \rightarrow (0,\infty]\) by formula

\[\begin{equation*} \kappa_{p,x}(k) = \frac{1}{k}s_p\left(I_{\Phi }(kx)\right). \end{equation*}\]

def Orlicz_function(u):
    return np.where(u <= 1, u, np.inf)

osm.kappa(Orlicz_function, x=x_1, k=1, p_norm=1)

np.float64(3.0)

%%timeit
osm.kappa(Orlicz_function, x=x_1, k=1, p_norm=1)

38.9 μs ± 2.55 μs per loop (mean ± std. dev. of 7 runs, 10,000 loops each)

p_Amemiya_norm()

By the \(p-\)Amemiya norm of an element \(x\in L_0\) we mean the norm defined by the formula

\[\begin{equation*} \left\Vert x\right\Vert _{\Phi,p }=\underset{k>0}{\inf }\frac{1}{k}s_p\left( I_{\Phi }(kx)\right) \quad \text{ for } \quad 1\leq p \leq \infty. \end{equation*}\]

It is well known that for \(p=1\) the \(p-\)Amemiya norm coincides with the Orlicz norm and for \(p=\infty\) with the Luxemburg norm [HM00].

osm.p_Amemiya_norm(Orlicz_function, x=x_1, p_norm=1)

np.float64(3.0)

%%timeit
osm.p_Amemiya_norm(Orlicz_function, x=x_1, p_norm=1)

14.1 ms ± 365 μs per loop (mean ± std. dev. of 7 runs, 100 loops each)

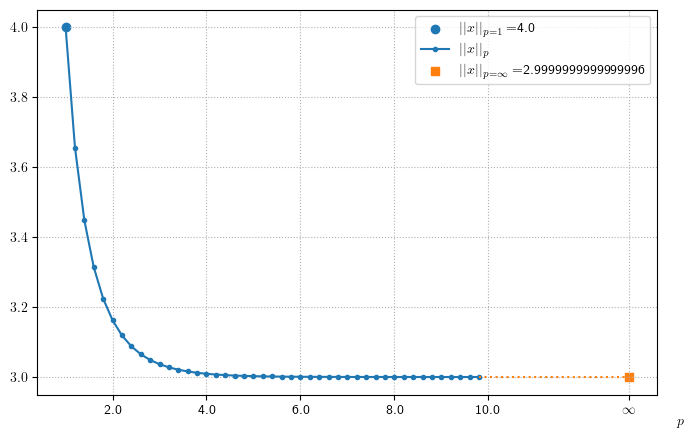

x = np.array([[1], [3]])
osm.plot_p_norms(Orlicz_function,
                 x=x,
                 p_min=1,
                 p_max=10,
                 dp=.2,
                 attach_inf=True,
                 figsize=(8, 5))

p_Amemiya_norm_with_stars()

Denote \(k^*_{p}(x) = \inf{K_{p}(x)}\) and \(k^{**}_{p}(x) = \sup{K_{p}(x)}\) (with convention \(\inf \emptyset = \infty\)). Then

\[\begin{equation*} K_{p}(x) = \left\{ \begin{array}{lll} \left[k^*_{p}(x), k^{**}_{p}(x)\right] & \text{if } & k^{**}_{p}(x)<\infty, \\ \left[k^*_{p}(x), \infty \right) & \text{if} & k^*_{p}(x)<\infty \text{ and } k^{**}_{p}(x)=\infty, \\ \emptyset & \text{if } & k^*_{p}(x)=\infty \end{array}% \right. \end{equation*}\]

and of any \(k \in K_{p}(x) \) holds

\[\begin{equation*} \left\Vert x\right\Vert _{\Phi,p }=\frac{1}{k}s_p\left( I_{\Phi }(kx)\right) \end{equation*}\]

or (if \(K_{p}(x) = \emptyset\) )

\[\begin{equation*} \left\Vert x\right\Vert _{\Phi,p }= \lim_{k\rightarrow \infty}\frac{1}{k}s_p\left( I_{\Phi }(kx)\right) \end{equation*}\]

osm.p_Amemiya_norm_with_stars(Orlicz_function, x=x_1, p_norm=1)

(np.float64(3.000110995691083),
 np.float64(0.9998890166275929),
 np.float64(0.9998890166275929))

where first result is \(||x||\), second is \(k_p^*(x)\) and third is \(k_p^{**}(x)\)

%%timeit
osm.p_Amemiya_norm_with_stars(Orlicz_function, x=x_1, p_norm=1)

226 ms ± 1.89 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)

example of using p_Amemiya_norm_with_stars() function with additional parameters

osm.p_Amemiya_norm_with_stars(Orlicz_function, x=x_1, p_norm=1,
                              k_min=0.9,
                              k_max=1.1,
                              len_domain_k=1000, )
# show_progress=True)

(np.float64(3.000000000000011),
 np.float64(0.999999999999989),
 np.float64(0.999999999999989))

%%timeit
osm.p_Amemiya_norm_with_stars(Orlicz_function, x=x_1, p_norm=1, k_min=0.9, k_max=1.1, len_domain_k=1000)

47.9 ms ± 2.39 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)

p_Amemiya_norm_with_stars_by_decimal()

Short examples how decimal module works

import decimal as dc  # for function using decimal precision

print(dc.getcontext().prec)
print(dc.Decimal(0.2))
print(dc.Decimal('0.2'))
print(dc.Decimal(1) / 5)
print((dc.Decimal(np.sqrt(2))) ** 2)
print((dc.Decimal(2).sqrt()) ** 2)

dc.getcontext().prec = 50
print(dc.Decimal(0.2))
print(dc.Decimal('0.2'))
print(dc.Decimal(1) / 5)
print((dc.Decimal(np.sqrt(2))) ** 2)
print((dc.Decimal(2).sqrt()) ** 2)

28
0.200000000000000011102230246251565404236316680908203125
0.2
0.2
2.000000000000000273432346306
1.999999999999999999999999999
0.200000000000000011102230246251565404236316680908203125
0.2
0.2
2.0000000000000002734323463064769280688491650795723
1.9999999999999999999999999999999999999999999999999

Orlicz function and x must be prepared to decimal form

def Orlicz_function(u):
    return np.where(u <= 1, u, dc.Decimal(np.inf))


len_t = 1
x_5 = np.zeros(shape=(2, len_t), dtype=np.dtype('object'))
x_5[1, 0] = dc.Decimal(2)  #  measure of support
x_5[0, 0] = dc.Decimal(1)  # value
osm.p_Amemiya_norm_with_stars_by_decimal(Orlicz_function, x=x_5, p_norm=1)

(Decimal('3.1110988766779245797415719566910102134319832100514'),
 Decimal('0.90000991'),
 Decimal('0.90000991'))

%%timeit
osm.p_Amemiya_norm_with_stars_by_decimal(Orlicz_function, x=x_5, p_norm=1)

71.9 ms ± 20.6 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)

example of using p_Amemiya_norm_with_stars_by_decimal() function with additional parameters

osm.p_Amemiya_norm_with_stars_by_decimal(Orlicz_function, x=x_5, p_norm=dc.Decimal(1),
                                         k_min=dc.Decimal('0.9'),
                                         k_max=dc.Decimal('1.1'),
                                         len_domain_k=1000, )
# show_progress=True)

(Decimal('3.0000'), Decimal('1.0000'), Decimal('1.0000'))

%%timeit
osm.p_Amemiya_norm_with_stars_by_decimal(Orlicz_function, x=x_5, p_norm=dc.Decimal(1),
                                         k_min=dc.Decimal('0.9'),
                                         k_max=dc.Decimal('1.1'),
                                         len_domain_k=1000
                                         )

59.2 ms ± 3.34 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)

In the next example there is false \(k_p^{*}(x)\) less than \(k_p^{**}(x)\)

def Orlicz_function(u):
    return np.where(u <= 1, u, 2 * u - 1)


x = np.array([[1], [3]])

osm.p_Amemiya_norm_with_stars(Orlicz_function, x=x, p_norm=20)

(np.float64(3.0000000000430616),
 np.float64(0.64823266269593),
 np.float64(0.9999516967001615))

osm.p_Amemiya_norm_with_stars_by_decimal(Orlicz_function, x=x, p_norm=dc.Decimal(10))

(Decimal('3.0000145688845555222000227125563249652936039015189'),
 Decimal('0.90000991'),
 Decimal('0.90000991'))

For better accuracy we may reduce domain by

osm.p_Amemiya_norm_with_stars(Orlicz_function, x=x, p_norm=20,
                              k_min=0.45,
                              k_max=1.05)

(np.float64(3.0000000000433653),
 np.float64(0.6671999999999962),
 np.float64(0.9995999999999903))

osm.p_Amemiya_norm_with_stars_by_decimal(Orlicz_function, x=x, p_norm=dc.Decimal(10),
                                         k_min=dc.Decimal(45) / 100,
                                         k_max=dc.Decimal(105) / 100)

(Decimal('3.0000051008541999106151967575520682494068505040605'),
 Decimal('0.9996'),
 Decimal('0.9996'))
